Model

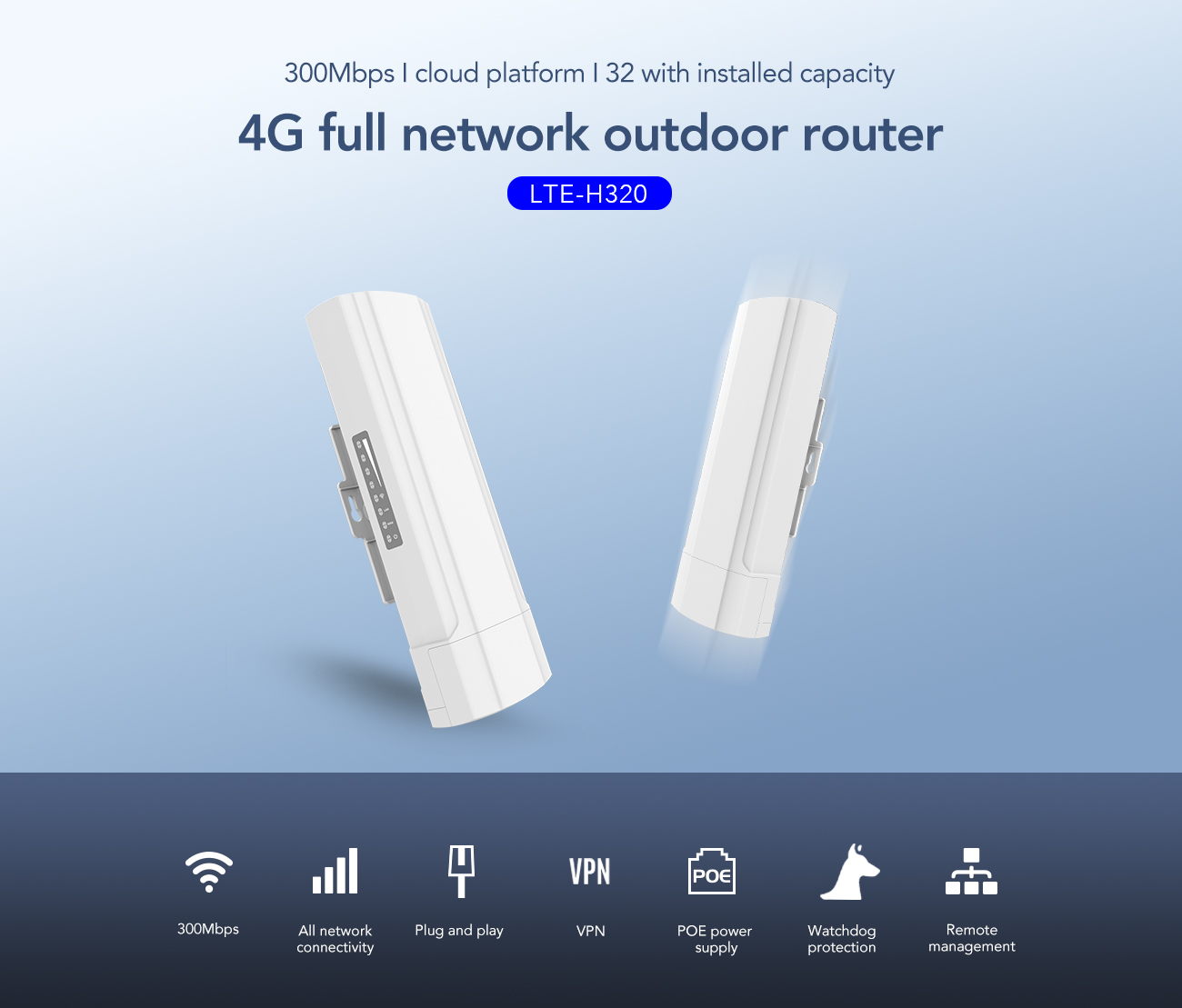

LTE-H320

CPU

MT7628DAN

Flash

SPI NOR 8MB

DDR

64MB

2.4G Frequency

2.4GHz – 2.484GHz

2.4G WIFI Protocol

802.11b / g / n

Data Rate

300Mbps

4G Antenna

Gain: 3dbi

2.4G WIFI antenna

Gain: 2dbi

SSID Hidden

Support

Maxi end users access

30+

TX power

< 22 dBm

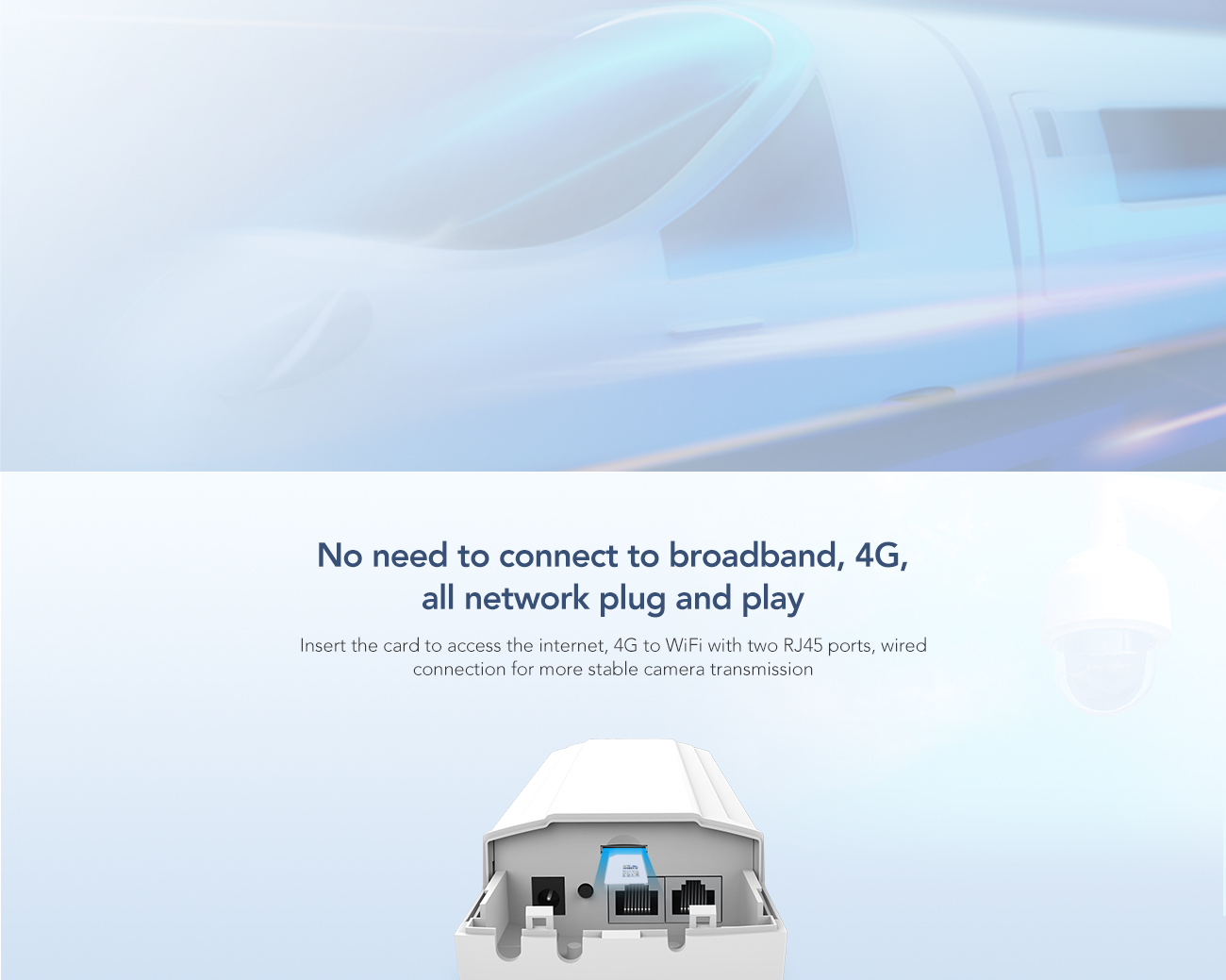

WAN

1 * 10/100M RJ45 WAN port，support PoE

LAN

1 * 10/100M RJ45 LAN port

SIM Card

1 * 4G SIM card slot

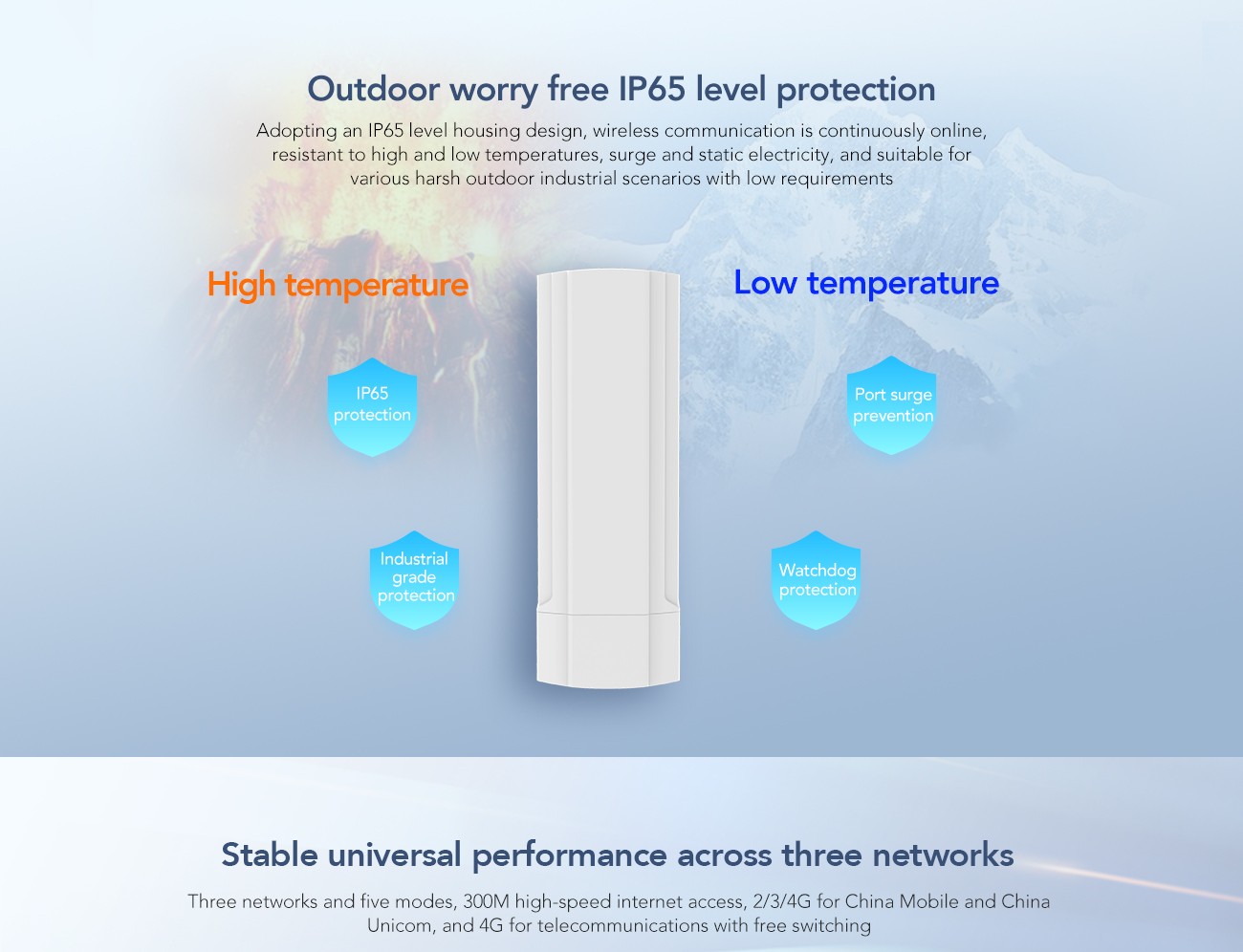

Water-Proof Level

IP65

DC

12V  1A

POE

24V  0.5A

Reset

reset×1（Press 10 seconds to revert to factory settings）

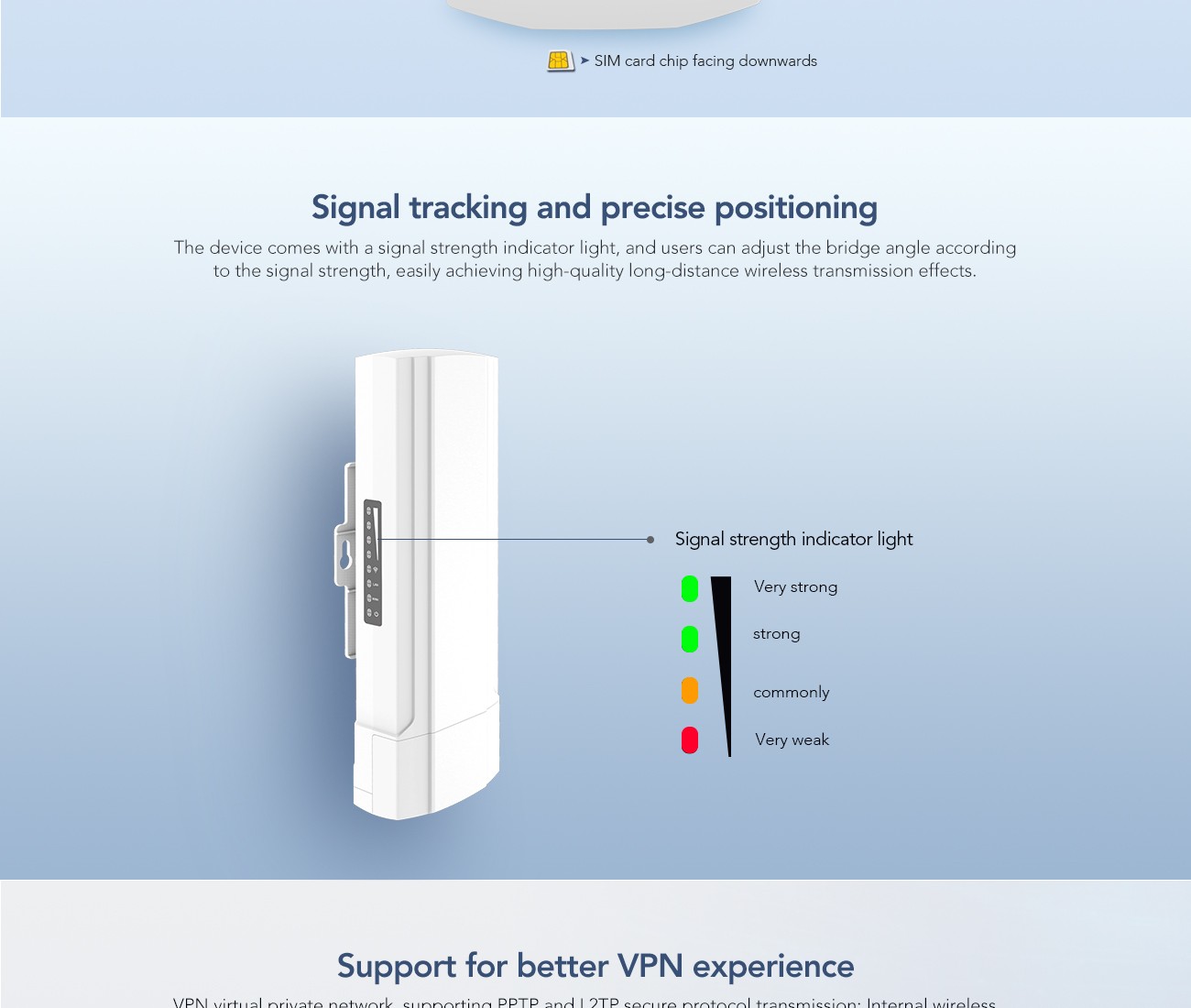

LED indicator

POWER ,WAN口 ,LAN,WLAN, Signal strength * 4

Power consumption

< 11W

Size

230mm * 75 mm * 40 mm

Working Environment

Working temperature: -30°C to 55°C

Limited working temperature:-40°C to 70°C

Storage Temperature: -40°C to 70°C

Humidity：5％～95％（No-considering）

LTE Module Model

Quectel EC25-AU, LTE-CAT4

Band Support

GSM: B2/3/5/8;

WCDMA: B1/2/5/8;

LTE FDD: B1/2/3/4/5/7/8/28;

LTE TDD: B40

LTE Data Rate

LTE-FDD: max 150(DL)/Max 50(UL)

LTE-TDD: max 130(DL)/Max 35(UL)

Wi-Fi

Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list

Net

PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G

Support automatically switch between WAN/ISP and 4G

Support VPN server and VPN client: PPTP, L2TP and OpenVPN

Support AP+Client

Firewall

Support NAT, URL Filter, MAC Filter and Network Service Filter

Support DoS attack protection, SYN flood attack

WAN PING,SSH, HTTP Access

Other functions

NTP and account setup;

Port forwarding

Virtual Server

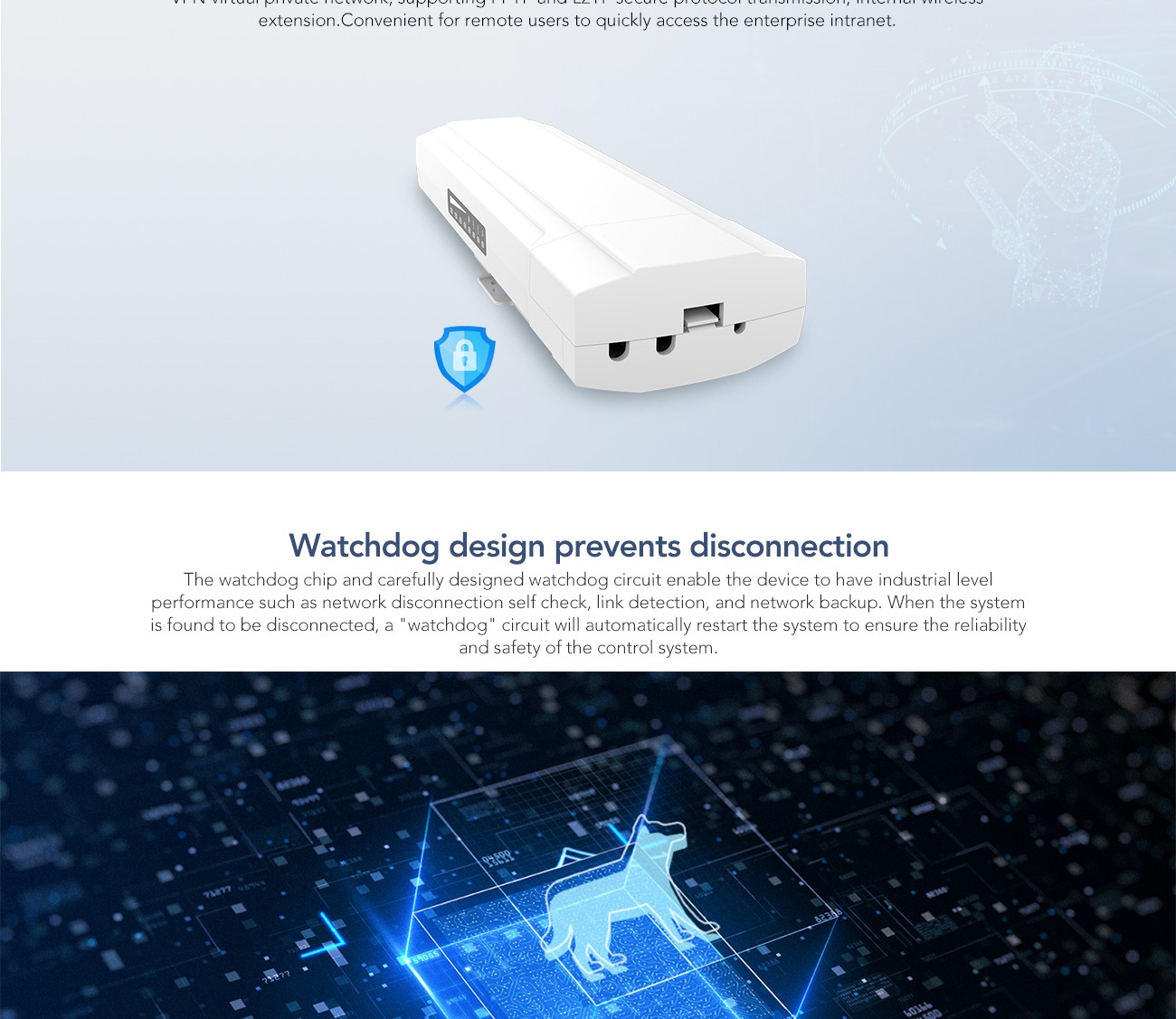

Watchdog

DMZ

DDNS
