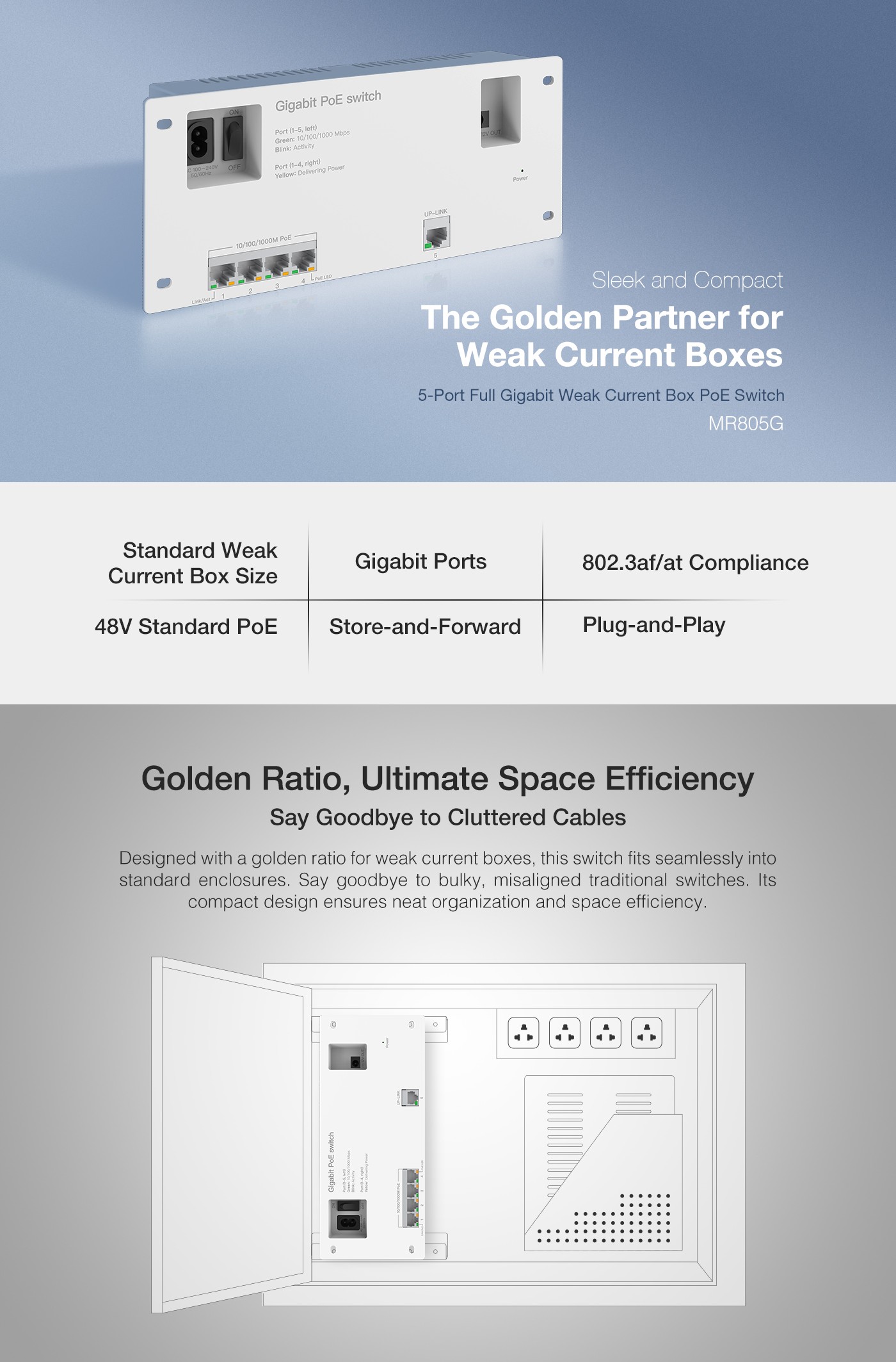

Model	MR805G
CPU	AN8855H
PoE IC	IP804AR
Standard	IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX Fast Ethernet IEEE802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 NWay Auto-negotiation IEEE 802.3z (Gigabit Ethernet fiber standard) IEEE802.3af IEEE802.3at
Ports	4 x 10/100/1000Mbps RJ45(802.3af/at compliant, max 30W per port) 1 x 10/100/1000M uplink port 1 x 12V/1A DC output port 1 x Power switch

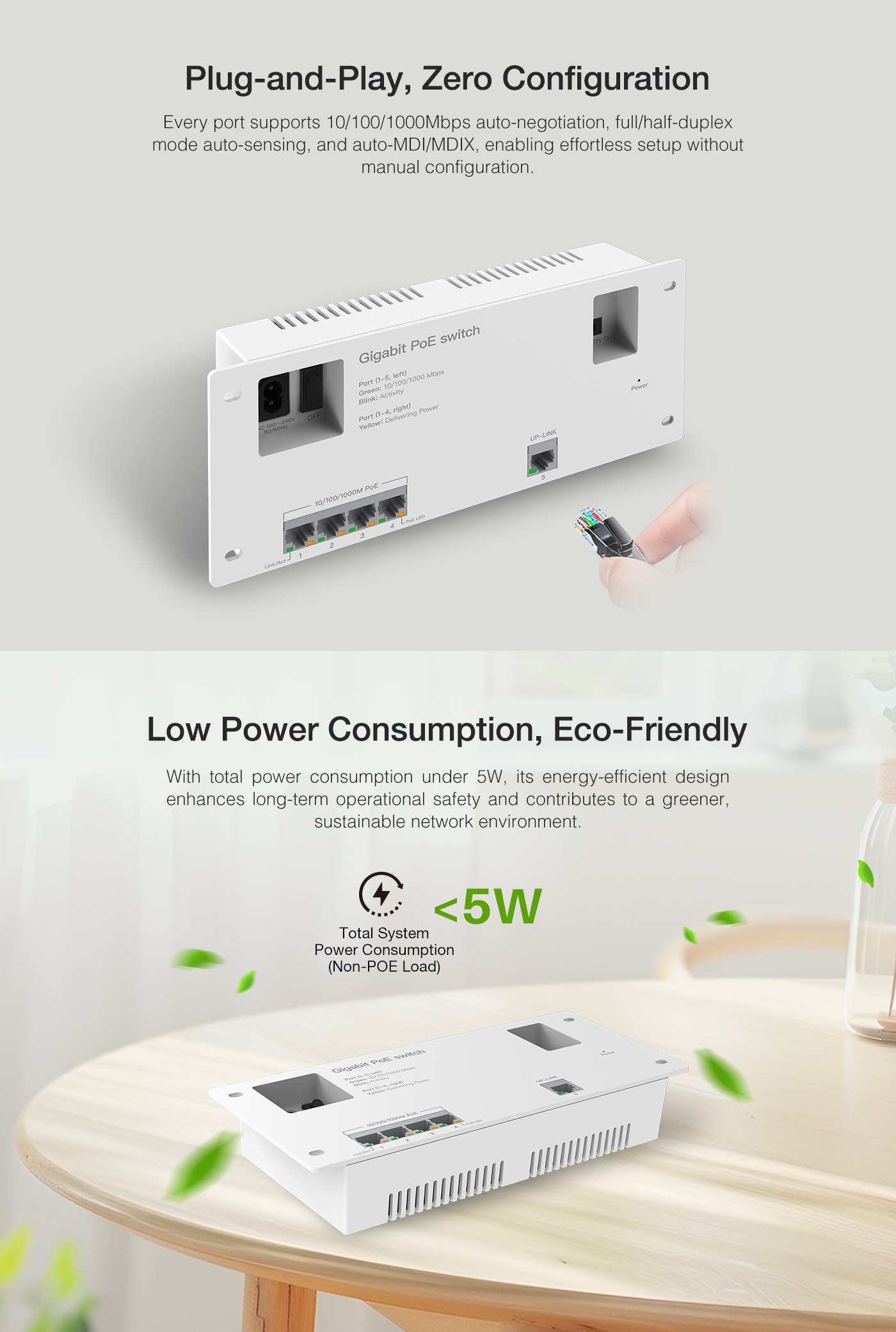

Port attributes	Connector Type: RJ-45 Supoort 10M/100M/1000 Mbit/s Support half-duplex, full-duplex, and auto-negotiation working modes Supoort MDI/MDI-X Auto-adaptive
PoE	IEEE 802.3af (15.4W) / IEEE 802.3at (30W) per port

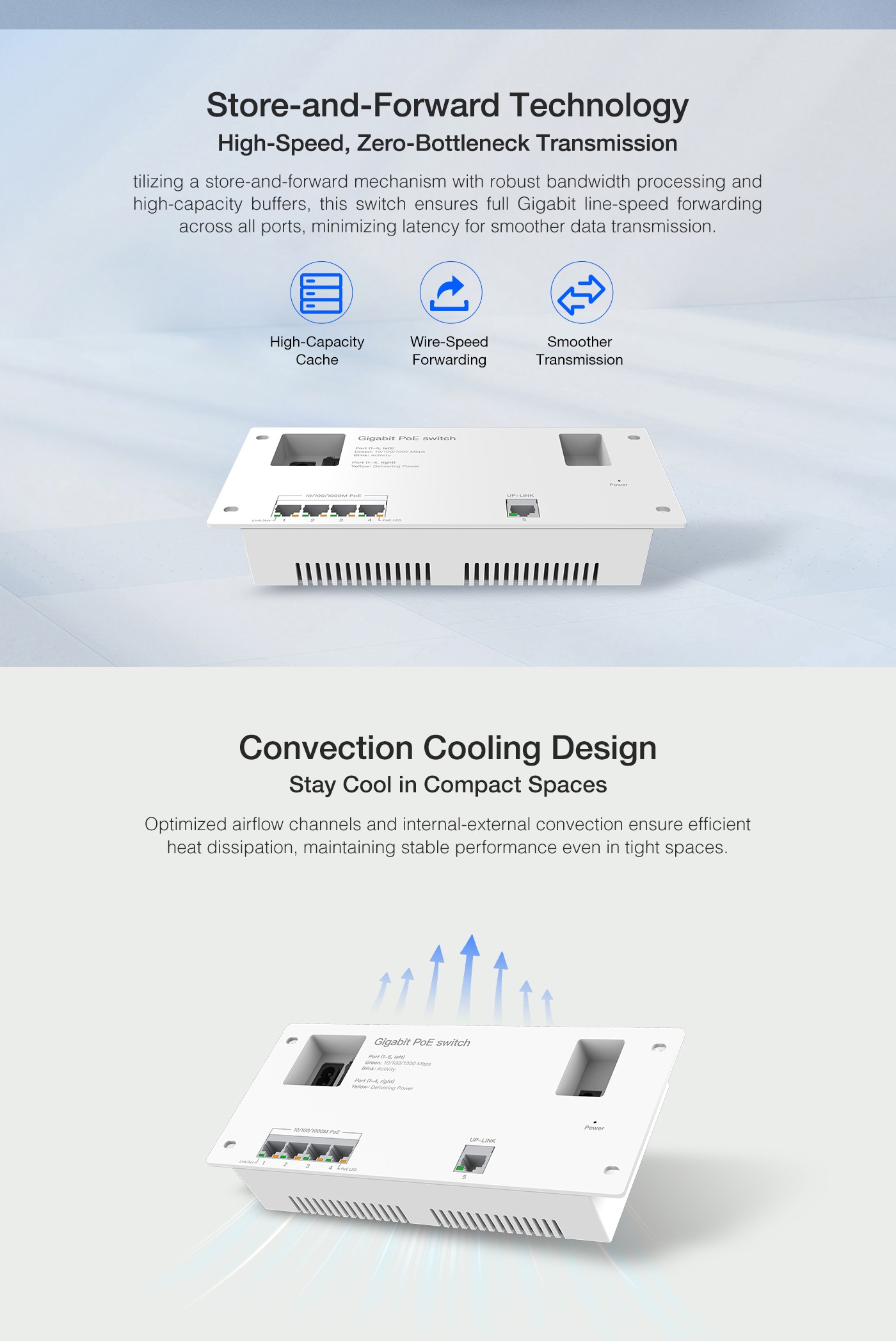

Switching Mode	Store-and-Forward
Packet forwarding rate	10 Mpbs: 14800pps 100 Mpbs: 148000pps 1000 Mpbs: 1480000pps
Backplane bandwidth	10Gbps
MAC address table	Maximum supported MAC addresses: 2K Support automatic address learning and automatic aging
Status Indicator	PWR: Power status Downlink Ports: Green (Link), Orange (PoE status) Uplink Port: Green (Link/Activity)
Power consumption	<3W (without PoE load)
Input Power	AC 100–240V, 50/60Hz
Network cable type	10BASE-T: Cat 3/4/5 UTP (≤250m for 10BASE-T) 100BASE-TX: Cat 5+ UTP (≤100m for 100/1000BASE-T) 1000Base-TX: Cat5 or above UTP/STP(≤100m
Szie	23210139mm
ESD	Air±8KV, touch±6KV
Surge	Common mode: ±2KV, differential mode: ±1KV
EMC	Class A
Working environment	Working temperature: -10℃ ～ +40℃; Storage temperature: -40℃ ～ +70℃; Humidity: 5% ～ 95% (no condensation)
