Specification:
Hardware:
Chipset	Media Tek: MT7628DAN+MT7613AE
Wireless	IEEE 802.11 a / n /ac, 2T2R 900M MIMO Technology
Memory	64MB RAM
Flash	8MB
Interface	1 * 10/100Mbps RJ45 WAN Port
	1 * 10/100Mbps RJ45 LAN Port
	1 * Switch to operate the operation mode (Right is AP mode, Left is Repeater mode)

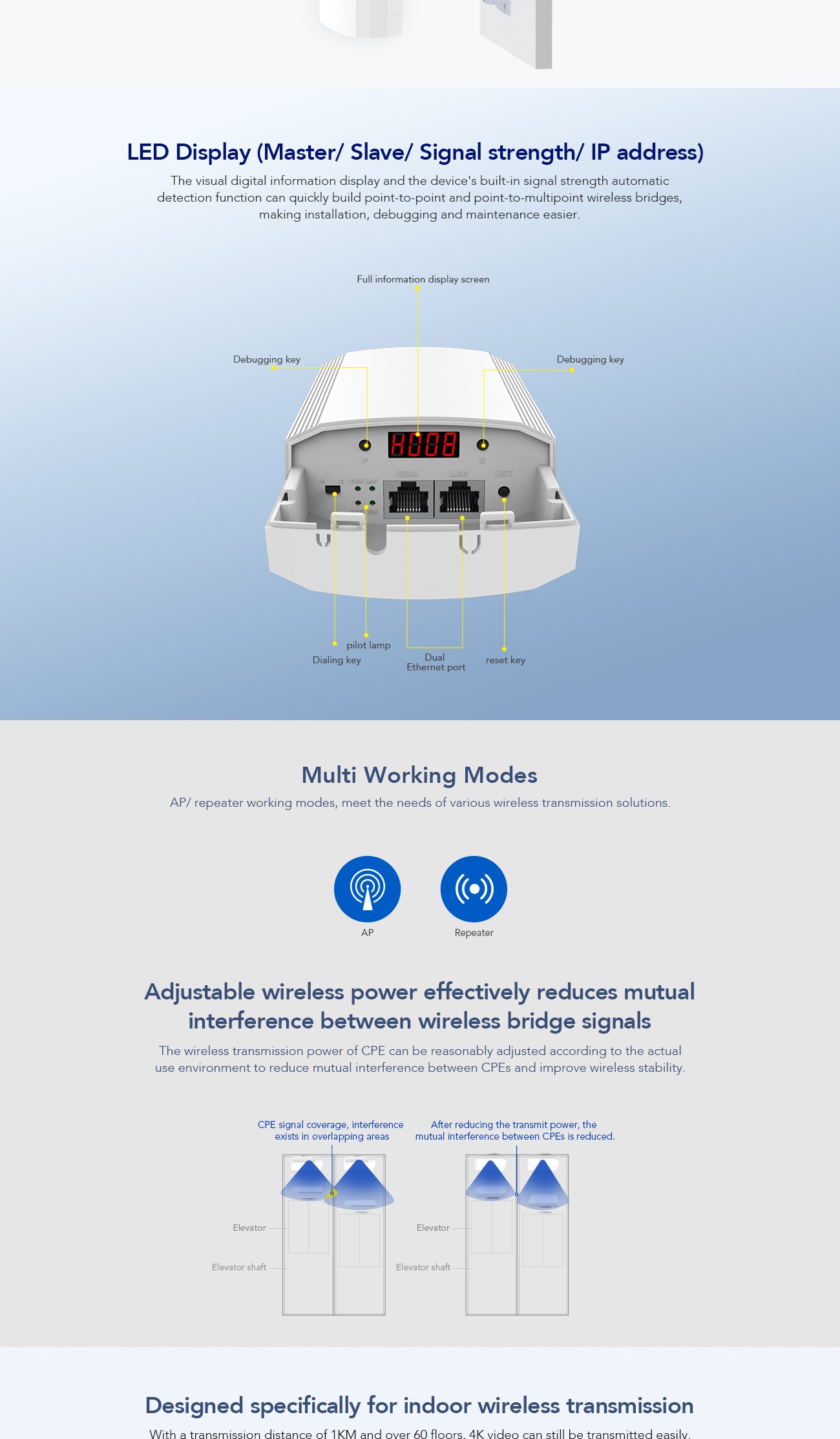

	1 * LED display with F/S configure buttons
	1 * Reset button, press 15 seconds to revert to default setting, press 1 second to finish LED display configuration
Antenna	12dBi Panel Antenna
LED Light	Sys(System), WAN, LAN, Wi-Fi
Size	168mm88mm47.6mm
Power	POE 24V/0.5A
Waterproof Level	IP65
ESD Protection Standard	Contact Discharge: ±6KV; Air Discharge: ±8KV
Surge Protection Standard	Common mode:±2KV; Differential mode:±1KV (Optional: Common mode:±4KV; Differential mode:±2KV)
RF Data
RF Data	802.11b/g/n/ac
	5.150GHz～5.850GHz
Data Rate	900Mbps
RF Power	802.11a	54M	17±2dBm	6M	19±2dBm
	802.11n HT20	MCS7	16±2dBm	MCS0	18±2dBm
	802.11n HT40	MCS7	15±2dBm	MCS0	17±2dBm
	802.11AC	MCS9	14±2dBm	MCS0	16±2dBm
Receive Sensitivity	802.11a	54M	-68dBm	6M	-86dBm
	802.11n HT20	MCS7	-68dBm	MCS0	-86dBm
	802.11n HT40	MCS7	-65dBm	MCS0	-83dBm
	802.11AC	MCS9	-55dBm	MCS0	-73dBm
EVM	802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB
PPM	±20ppm
