CPU

AN8855H*2

Standard

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3x

Interface

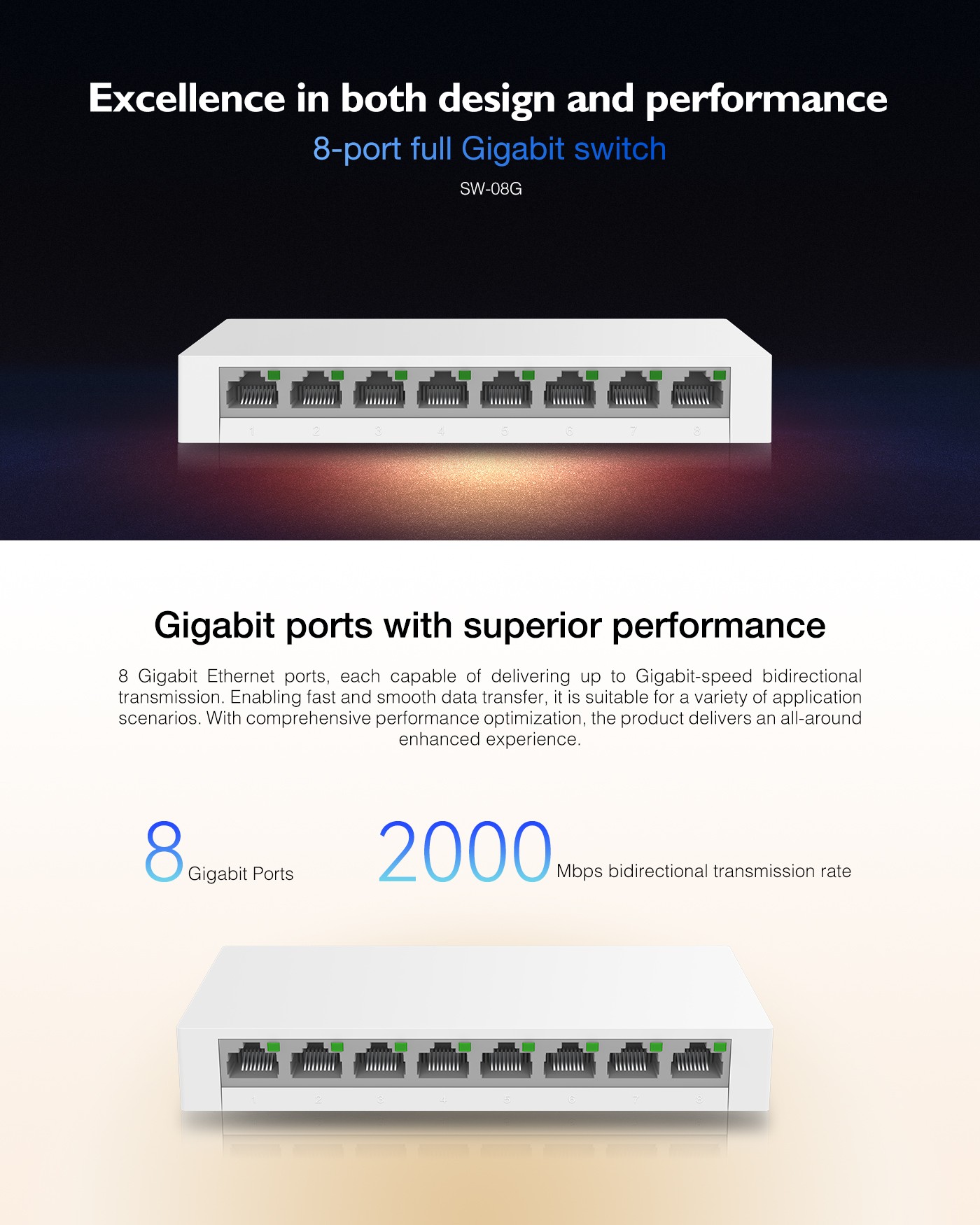

8*10M/100M/1000Mbps RJ45 Ethernet

Ethernet port properties

Port type: RJ-45

Support 10M/100M/1000Mbps transfer rate

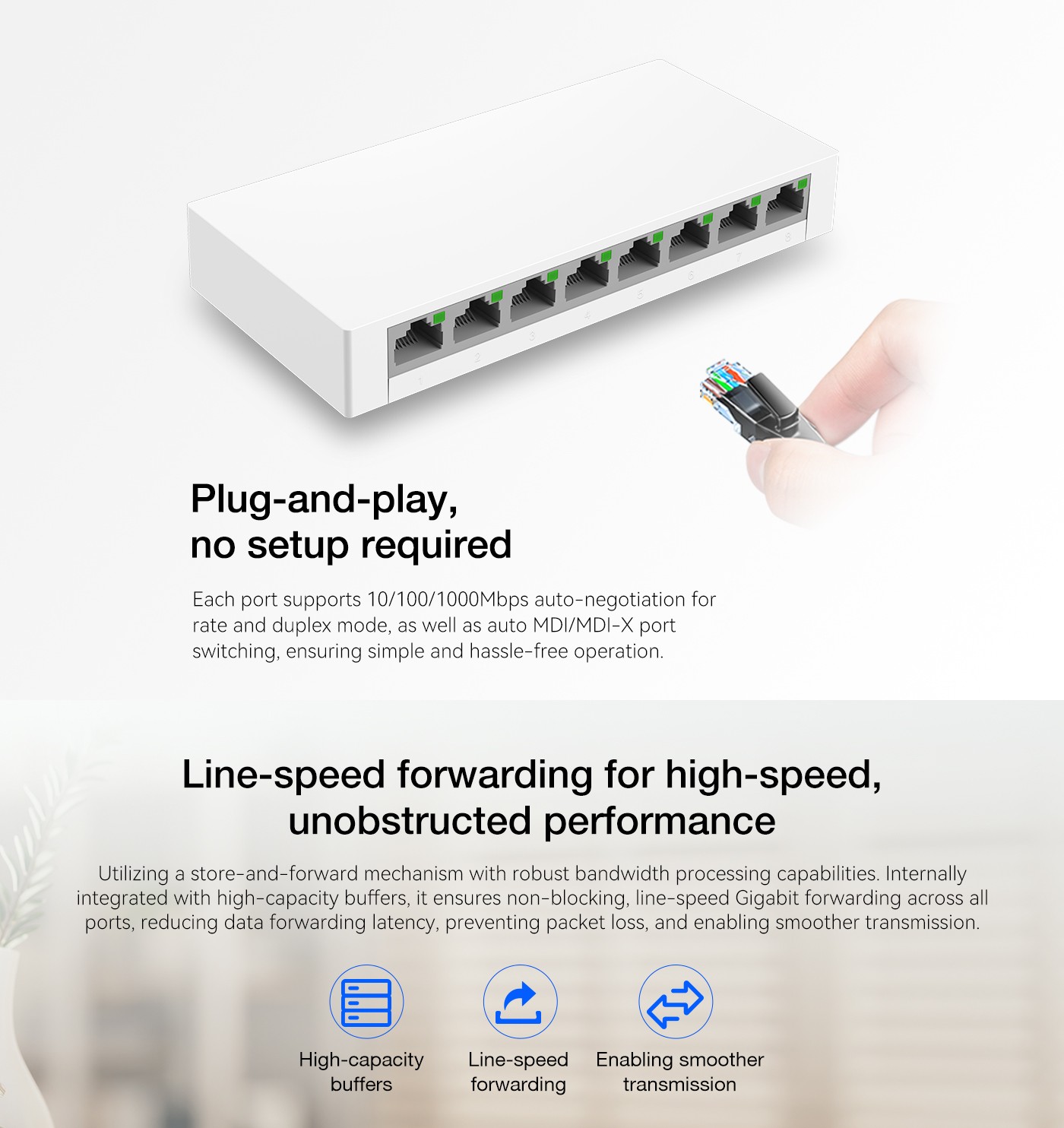

Support half-duplex, full-duplex, and auto-negotiation working modes

Support MDI/MDI-X adaptive

Exchange Mode

Store-and-forward mode

Packet forwarding rate

11.904Mpps

Backplane Bandwidth

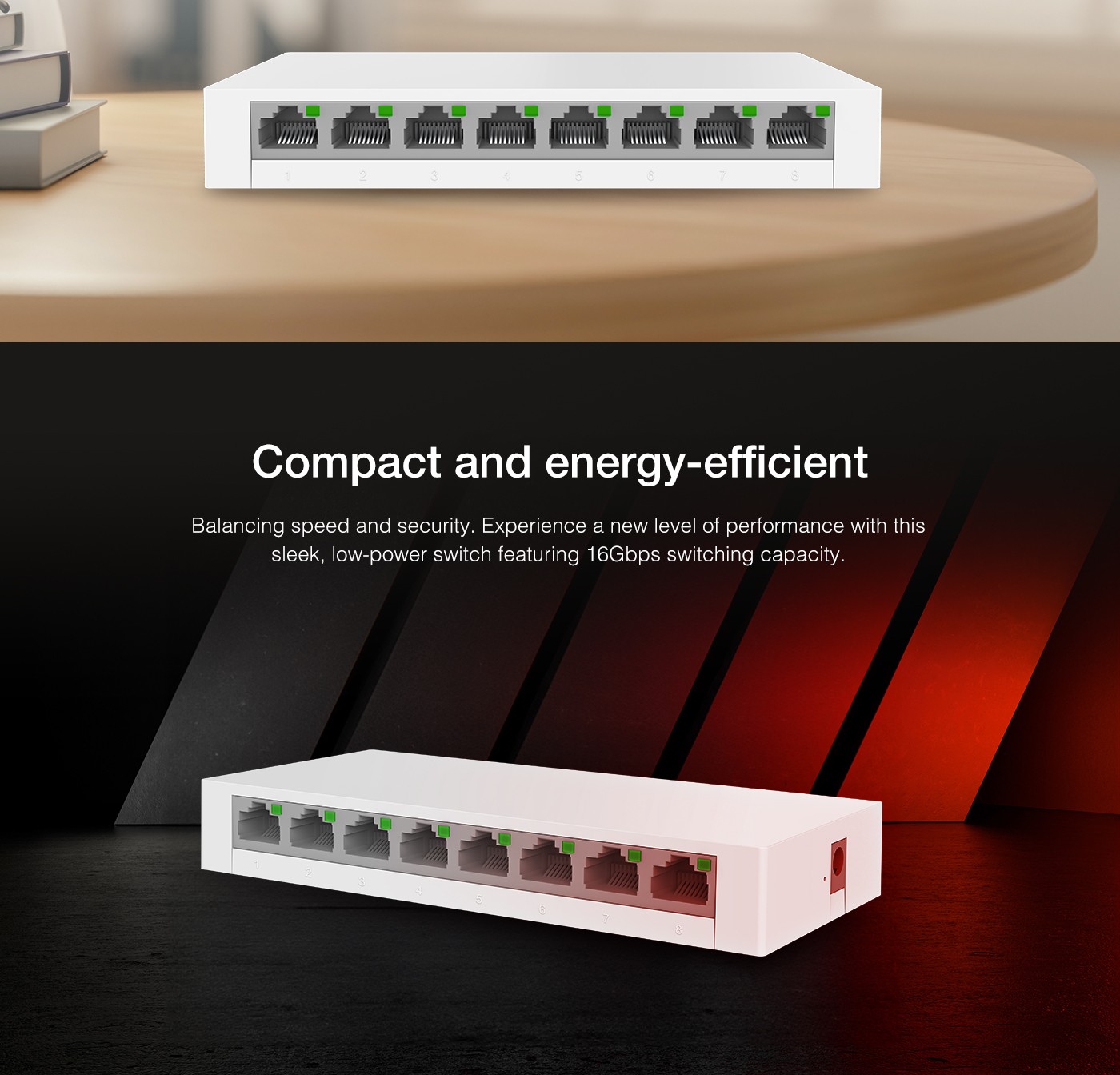

16Gbps

MAC address table

Max: 2K

Support automatic address learning and automatic aging

Indicator

PWR: Power light, green on when powered on, off when not powered on

Network port light: Yellow light is always on, Link; flashing, there is data; off, not connected.

Maximum power consumption

<5W

Power input

DC 5V 1A

Cable type

10Base-TX : Cat3/ 4/ 5 or above UTP(≤100m)

100Base-TX: Cat5 or above UTP(≤100m)

1000Base-TX: Cat5 or above UTP(≤100m)

Size

149*70*23mm

ESD

Air: +/-4K

Surge

Common mode 2K, differential mode 1K

EMC

Class A

Working Environment

Working temperature: -10℃ ～ +55℃; Storage temperature: -40℃ ～ +70℃; Humidity: 5% ～ 95% (no condensation)
