product model

MR890

CPU

MT7621AT

Flash

16MB

internal storage

512MB

POE output

48V

POE power

The total power of the whole machine is 72W, and the maximum power of the single-port POE output is 15.4W

Interface

1*10 / 100M / 1000M adaptive WAN port

7*10 / 100M / 1000M af/at POE output LAN ports

1 DC Jack 48V 1.5A

One reset button

reset key

Reset Key (long press for 10 seconds to restore the default factory configuration)

Status indicator light

PWR (power lamp); NET (network lamp); WAN port lamp

operating power

＜8W

Product feet

229mm * 49.5mm * 28.0mm

weight

0.34kg

work environment

Normal operating temperature: -20°C to 50°C; storage temperature: -40°C to 70°C; humidity: 5%~95% (no condensation)

ESD

Air discharge + / -8K, contact discharge + / -4K

surge

Common mode 2K, difference mode 1K

AP manage

The maximum number of managed users is 128 users

The AP management number is 128 units

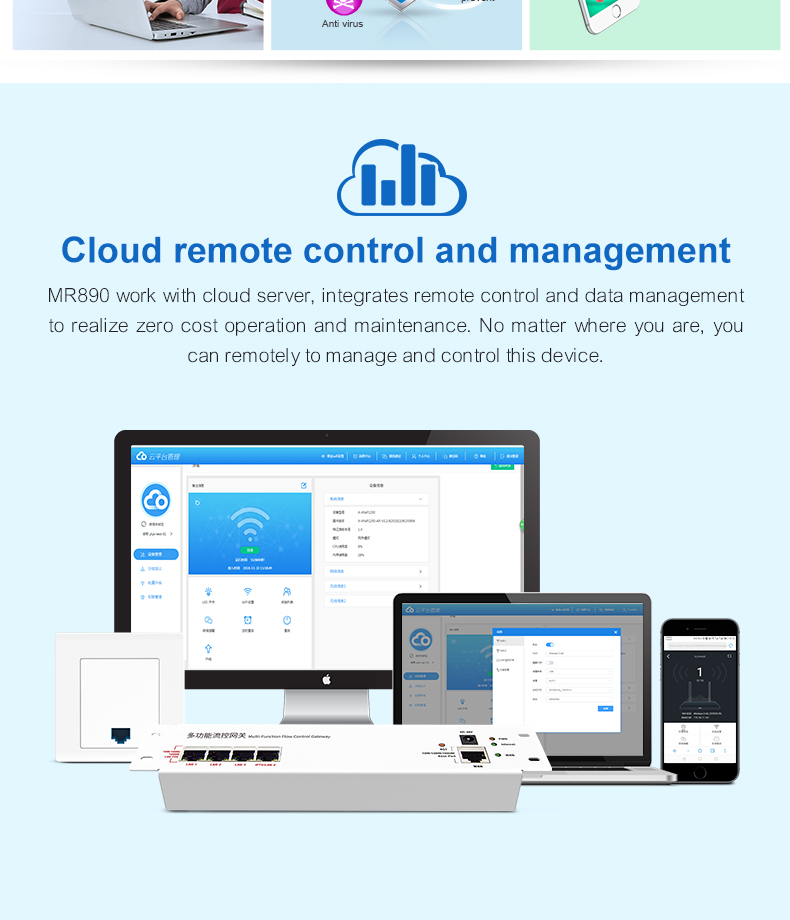

Centralized and remote management, to configure the wireless AP

Equipment overview

Total number of users, current links, online devices, and offline devices

On-access real-time rate, running time, user management, device management

Equipment information, equipment description, Intranet information, extranet information

device management

List of equipment

Template Settings

Device upgrade

service configuration

IPTV set up

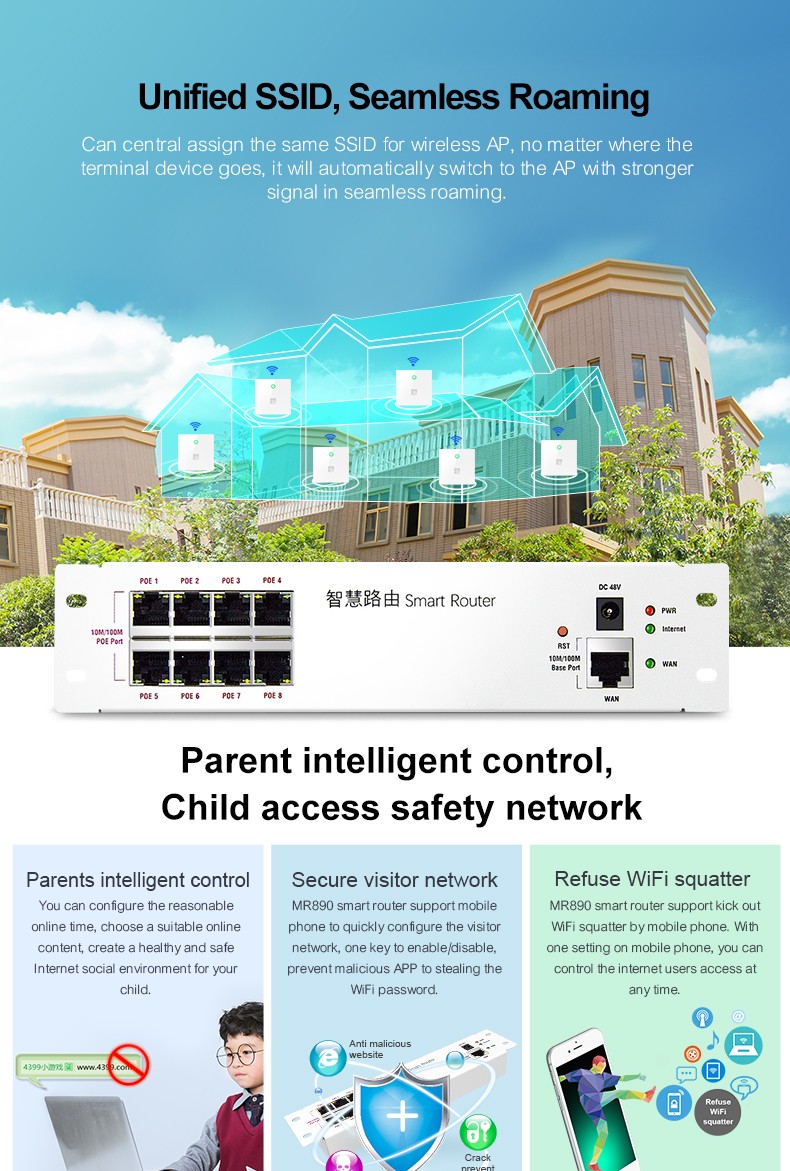

Automatic roaming

user management

User list

User speed limit

Security center

IP filter

MAC filter

Website filtering

port mapped

DMZ set up

Network function

Connection mode: static address, dynamic acquisition (DHCP), broadband dial (PPPOE), bypass mode

DHCP server: either built-in DHCP server or external DHCP server

Cloud platform server

system management

Backup Configuration Information

Restore configuration information

factory data reset

Restart immediately

firmware upgrade

Time management includes the system display time and time synchronization

system log
